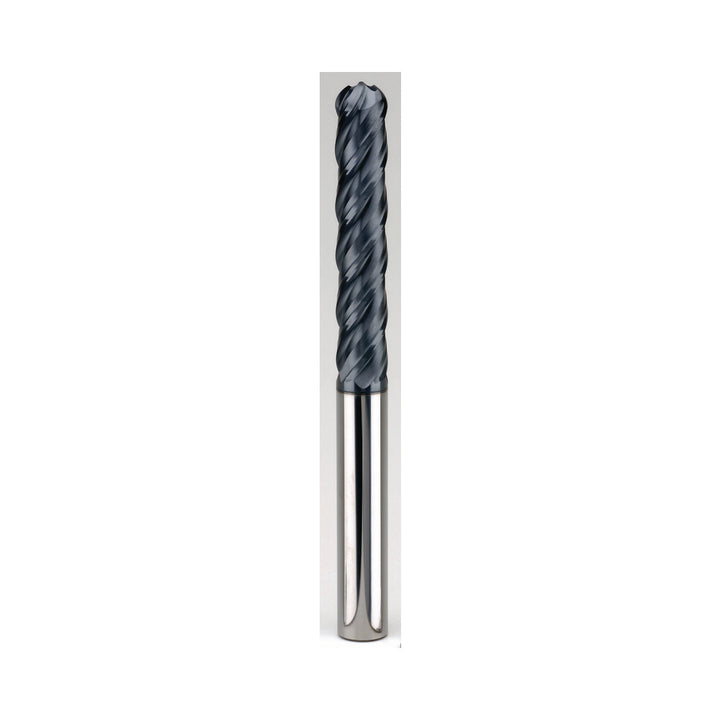

5/16" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 70450

SGS

5/16" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 70450

MFR# 70450Series 7B

$50.06List $64.21 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 70450 is a 5/16 4-flute Solid Carbide (Micrograin) ball end mill with a AlTiN finish for longer tool life. 1-1/8 length of cut, 3 overall length. Series 7B.

Specifications

ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Helix styleHigh
Length of cut in1-1/8
Length typeLong
Material gradeMicrograin
Material removal typeFinishing
Mill diameter in5/16
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes4
Overall length in3
Shank diameter in5/16
Shank diameter tolerance+0.00000 to -0.00035 in
Single or double endSingle
Variable helixNo
Variable indexYes
