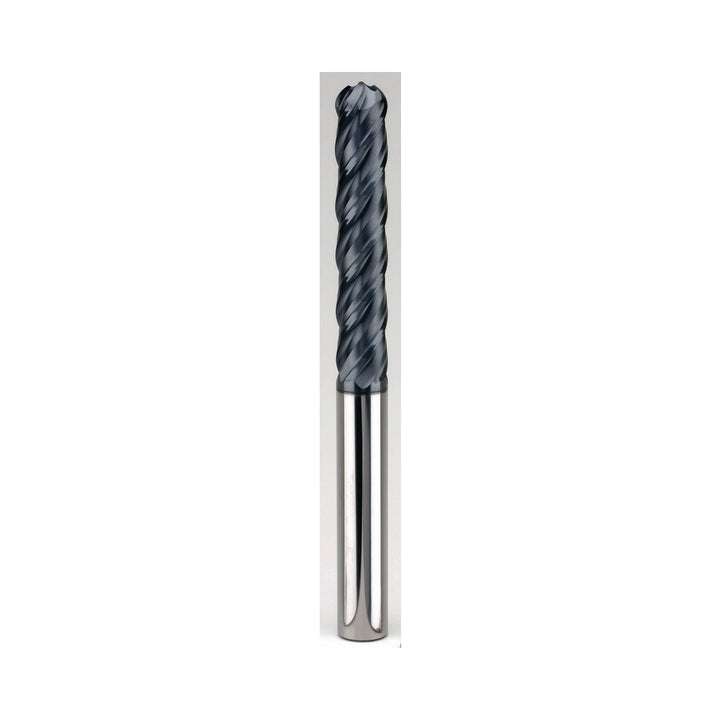

0.1575" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 70529

SGS

0.1575" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 70529

MFR# 70529Series 7MB

$39.04List $50.07 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 70529 is a 0.1575 4-flute Solid Carbide (Micrograin) ball end mill with a AlTiN finish for longer tool life. Series 7MB.

Specifications

ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Helix styleHigh
Length of cut (mm)25.00
Length typeLong
Material gradeMicrograin
Material removal typeFinishing
Mill diameter0.1575
Mill diameter tolerance+0.000 to -0.050 mm
Number of flutes4
Overall length (mm)75.00
Shank diameter (mm)4.00
Shank diameter tolerance0.000 to -0.008 mm
Single or double endSingle
Variable helixNo
Variable indexYes
