Sumitomo

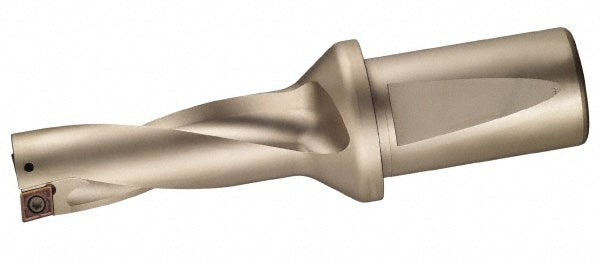

Indexable Drilling - Sumitomo 2A00W1T
MFR# 2A00W1TSeries WDX
$529.61List $656.41
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sumitomo 2A00W1T indexable drilling. Series WDX.
Specifications
Body length2.3950
Collar diameter1.1020
Compatible drill styleWDX
Compatible insert styleWDXT
Coolant hole thread size1/8 NPT
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Flute length1.8040
Insert compatibilityWDXT 042004
Maximum drill depth1.8040
Maximum drill depth range1.0000 to 2.0000
Maximum drill diameter in9/16
Modular connection size3/4 in
Neck diameter in1.1020
Number of drill inserts2
Shank diameter in3/4
Shank length2.0000
Shank typeStraight-Cylindrical
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
