Sumitomo

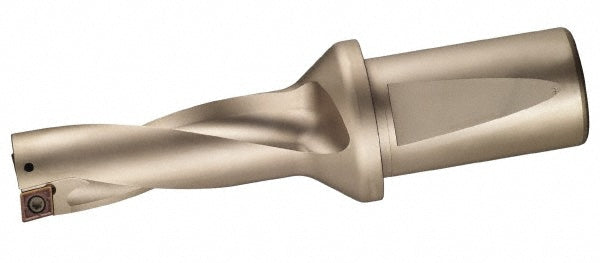

Indexable Drilling - Sumitomo 2A00W2F
MFR# 2A00W2FSeries WDX
$546.54List $677.39
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sumitomo 2A00W2F indexable drilling. Series WDX.
Specifications
Body length3.1460
Collar diameter1.2990
Compatible drill styleWDX
Compatible insert styleWDXT
Coolant hole thread size1/4 NPT
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Drill diameter in13/16
Flute length2.5560
Insert compatibilityWDXT 063006
Maximum drill depth2.5560
Maximum drill depth range2.0000 to 3.0000
Maximum drill diameter in13/16
Modular connection size1 in
Neck diameter in1.2990
Number of drill inserts2
Shank diameter in1
Shank length2.5000
Shank typeStraight-Cylindrical
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
