Sumitomo

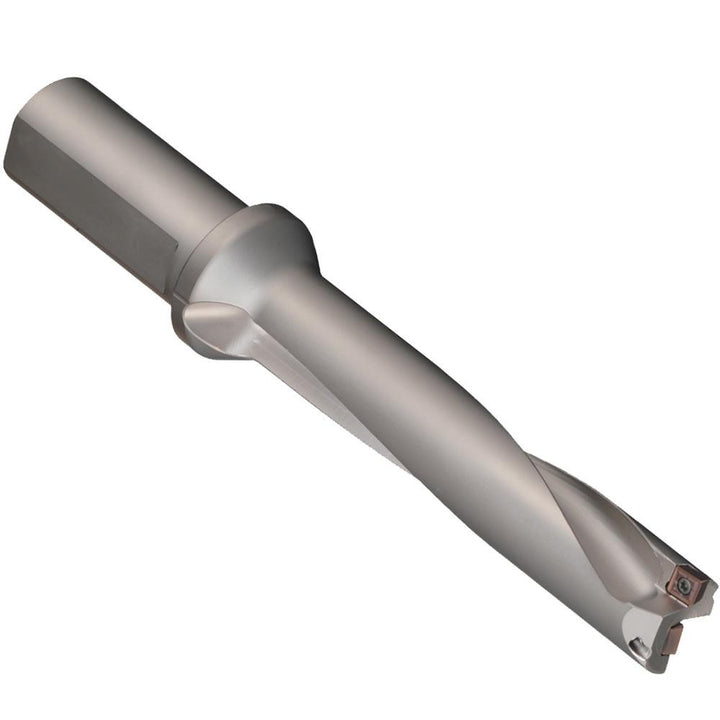

Indexable Drilling - Sumitomo 2A00W2H
MFR# 2A00W2HSeries WDX
$519.70List $644.13
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sumitomo 2A00W2H indexable drilling. Series WDX.
Specifications
Body length2.4590
Collar diameter1.2990
Compatible drill styleWDX
Compatible insert styleWDXT
Coolant hole thread size1/4 NPT
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2xD
Drill diameter in7/8
Flute length1.8680
Insert compatibilityWDXT 063006
Maximum drill depth1.8680
Maximum drill depth range1.0000 to 2.0000
Maximum drill diameter in7/8
Modular connection size1 in
Neck diameter in1.2990
Number of drill inserts2
Shank diameter in1
Shank length2.5000
Shank typeStraight-Cylindrical
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
