Sumitomo

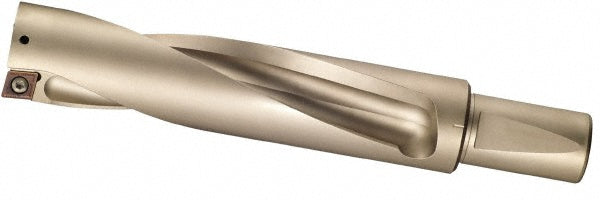

Indexable Drilling - Sumitomo 2A00W2N
MFR# 2A00W2NSeries SumiDrill
$663.75List $822.68
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sumitomo 2A00W2N indexable drilling. Series SumiDrill.
Specifications
Body length4.5770
Collar diameter1.6140
Compatible drill styleWDX
Compatible insert styleWDXT
Coolant hole thread size"1/4-18 NPT"
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio4xD
Flute length3.8680
Insert compatibilityWDXT 073506
Maximum drill depth3.8680
Maximum drill depth range3.0000 to 4.0000
Maximum drill diameter in15/16
Neck diameter in1.6140
Number of drill inserts2
Shank diameter in1-1/4
Shank length2.5000
Shank typeWhistle Notch
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
