Sumitomo

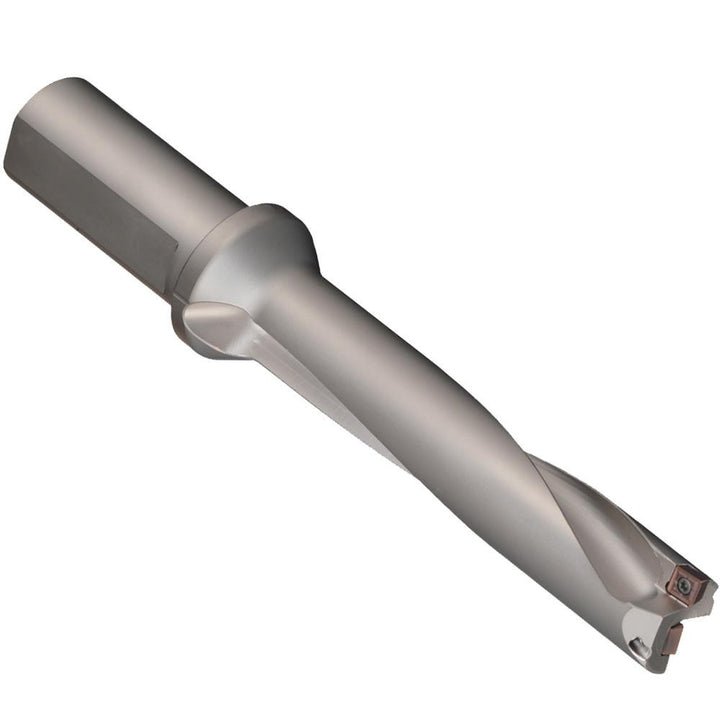

Indexable Drilling - Sumitomo 2A00W2P
MFR# 2A00W2PSeries WDX
$547.94List $679.13
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sumitomo 2A00W2P indexable drilling. Series WDX.
Specifications
Body length2.8270
Compatible drill styleWDX
Compatible insert styleWDXT
Coolant hole thread size1/4 NPT
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2xD
Drill diameter in1
Insert compatibilityWDXT 073506
Insert size0.2953x0.1378
Maximum drill depth2.1180
Maximum drill depth range2.0000 to 3.0000
Maximum drill diameter in1
Modular connection size1-1/4 in
Neck diameter in1.6140
Shank diameter in2-1/2
Shank length2.5000
Shank typeWhistle Notch
Tool applicationDrilling
Tool performanceGeneral Purpose
