Sumitomo
Indexable Drilling - Sumitomo 2A00W2Q
MFR# 2A00W2QSeries WDX
$576.19List $714.14
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

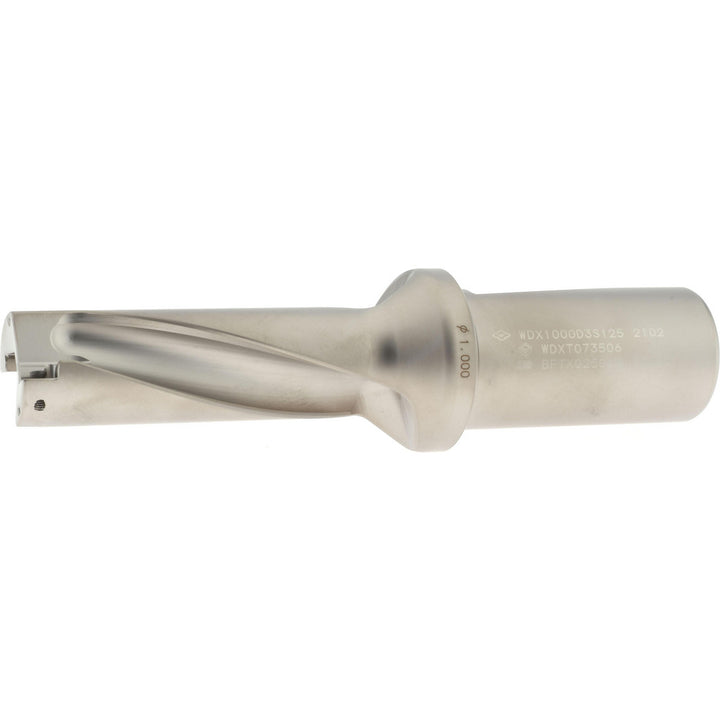

The Sumitomo 2A00W2Q indexable drilling. Series WDX.
Specifications
Body length3.8270
Compatible drill styleWDX
Compatible insert styleWDXT
Coolant hole thread size"1/4-18 NPT"
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Flute length3.1180
Insert compatibilityWDXT 073506
Insert size0.2953x0.1378
Maximum drill depth3.1180
Maximum drill depth range3.0000 to 4.0000
Maximum drill diameter in1
Neck diameter in1.6140
Shank diameter in1-1/4
Shank length2.5000
Shank typeWhistle Notch
Tool applicationDrilling
Tool performanceGeneral Purpose
