Sumitomo

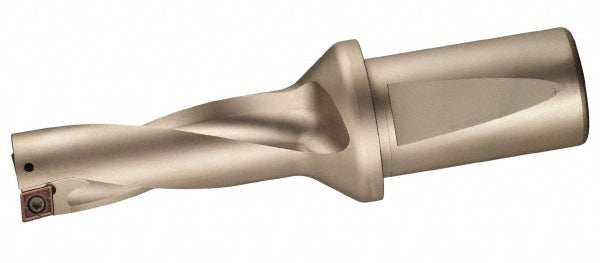

Indexable Drilling - Sumitomo 2A00W2T
MFR# 2A00W2TSeries SumiDrill
$607.94List $740.40
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sumitomo 2A00W2T indexable drilling. Series SumiDrill.
Specifications
Body length4.0140
Collar diameter1.6140
Compatible drill styleWDX
Compatible insert styleWDXT
Coolant hole thread size1/4 NPT
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Flute length3.3060
Insert compatibilityWDXT 073506
Maximum drill depth3.3060
Maximum drill depth range3.0000 to 4.0000
Maximum drill diameter in1-1/16
Modular connection size1-1/4 in
Neck diameter in1.6140
Number of drill inserts2
Shank diameter in1-1/4
Shank length3.0000
Shank typeWhistle Notch
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
