Sumitomo

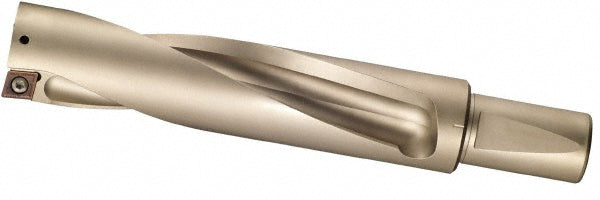

Indexable Drilling - Sumitomo 2A00W2X
MFR# 2A00W2XSeries SumiDrill
$687.76List $852.43
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sumitomo 2A00W2X indexable drilling. Series SumiDrill.
Specifications
Body length5.3270
Collar diameter1.6140
Compatible drill styleWDX
Compatible insert styleWDXT
Coolant hole thread size"1/4-18 NPT"
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio4xD
Flute length4.6180
Insert compatibilityWDXT 073506
Maximum drill depth4.6180
Maximum drill depth range4.0000 to 5.0000
Maximum drill diameter in1-1/8
Neck diameter in1.6140
Number of drill inserts2
Shank diameter in1-1/4
Shank length3.0000
Shank typeWhistle Notch
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
