Sumitomo

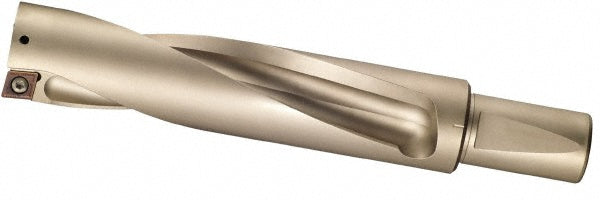

Indexable Drilling - Sumitomo 2A00W31
MFR# 2A00W31Series SumiDrill
$871.06List $1,097.74
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sumitomo 2A00W31 indexable drilling. Series SumiDrill.
Specifications
Body length5.7340
Collar diameter1.9680
Compatible drill styleWDX
Compatible insert styleWDXT
Coolant hole thread size"1/4-18 NPT"
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio4xD
Flute length4.0907
Insert compatibilityWDXT 094008
Maximum drill depth4.0907
Maximum drill depth range4.0000 to 5.0000
Maximum drill diameter in1-3/16
Neck diameter in1.9680
Number of drill inserts2
Shank diameter in1-1/4
Shank length3.0000
Shank typeWhistle Notch
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
