Sumitomo

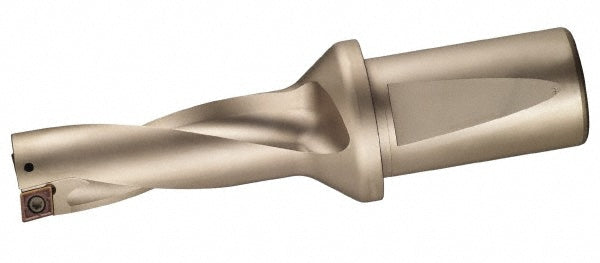

Indexable Drilling - Sumitomo 2A00W36
MFR# 2A00W36Series SumiDrill
$636.18List $788.50
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sumitomo 2A00W36 indexable drilling. Series SumiDrill.
Specifications
Body length5.0400
Collar diameter2.1260
Compatible drill styleWDX
Compatible insert styleWDXT
Coolant hole thread size1/4 NPT
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Flute length4.0950
Insert compatibilityWDXT 094008
Maximum drill depth4.0950
Maximum drill depth range4.0000 to 5.0000
Maximum drill diameter in1-5/16
Modular connection size1-1/2 in
Neck diameter in2.1260
Number of drill inserts2
Shank diameter in1-1/2
Shank length3.0000
Shank typeWhistle Notch
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
