Sumitomo

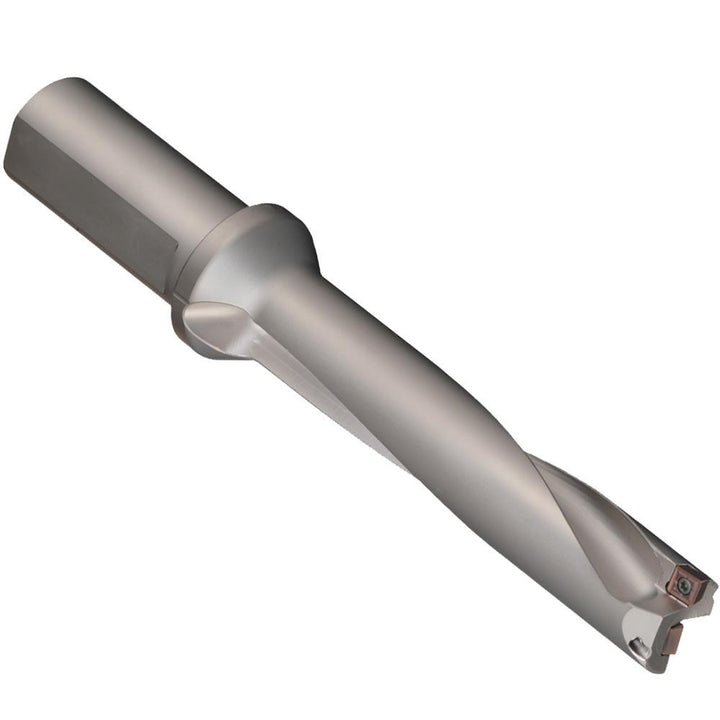

Indexable Drilling - Sumitomo 2A00W3S
MFR# 2A00W3SSeries SumiDrill
$686.29List $850.62
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sumitomo 2A00W3S indexable drilling. Series SumiDrill.
Specifications
Body length4.6020
Collar diameter1.9490
Compatible drill styleWDX
Compatible insert styleWDXT
Coolant hole thread size"1/4-18 NPT"
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2xD
Flute length3.6570
Insert compatibilityWDXT 125012
Maximum drill depth3.6570
Maximum drill depth range3.0000 to 4.0000
Maximum drill diameter in1-3/4
Neck diameter in1.9490
Number of drill inserts2
Shank diameter in1-1/2
Shank length3.0000
Shank typeWhistle Notch
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
