Sumitomo

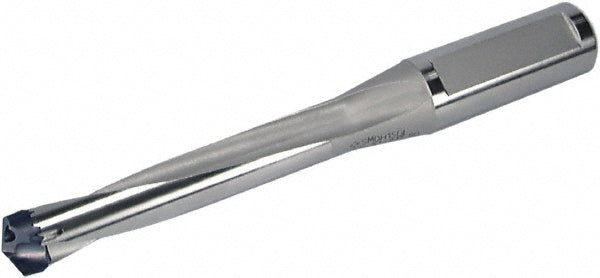

Indexable Drilling - Sumitomo 5L00W05
MFR# 5L00W05Series SMD
$350.49List $361.93
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sumitomo 5L00W05 indexable drilling. Series SMD.
Specifications
Body length3.6250in
Compatible insert styleSMDT
Coolant throughYes
Drill depth by diameter ratio5xD
Flute length3.6250
Maximum drill depth2.9060
Maximum drill depth range2.5000 to 3.5000
Maximum drill diameter0.5311
Minimum drill diameter0.5118
Overall length5.5000in
Shank diameter in5/8in
Shank length1.8750in
Shank typeWhistle Notch
Toolholder styleSMDH
Tool applicationDrilling
Tool materialSteel
