Sumitomo

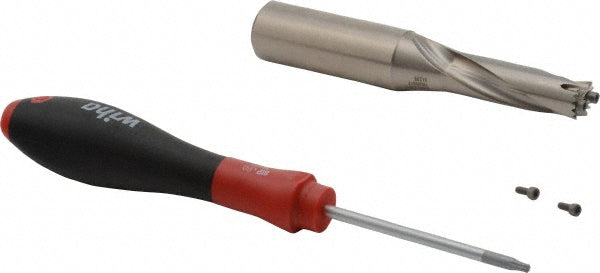

Indexable Drilling - Sumitomo 5L00W09
MFR# 5L00W09Series SMD
$296.59List $306.27
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sumitomo 5L00W09 indexable drilling. Series SMD.
Specifications
Body length2.5270in
Compatible insert styleSMDT
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length2.5270
Maximum drill depth2.0080
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.5709
Minimum drill diameter0.5315
Overall length4.5270in
Shank diameter in3/4in
Shank length2.0000in
Shank typeStraight-Cylindrical
Toolholder styleSMDH
Tool applicationDrilling
Tool materialSteel
