Sumitomo

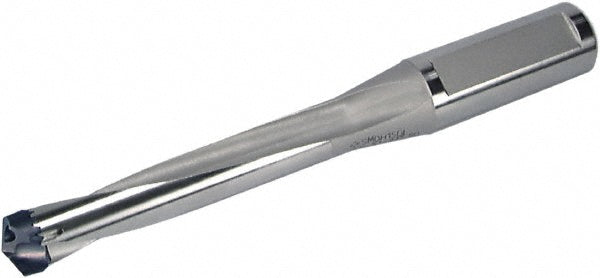

Indexable Drilling - Sumitomo 5L00W0E
MFR# 5L00W0ESeries SMD
$377.44List $389.76
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sumitomo 5L00W0E indexable drilling. Series SMD.
Specifications
Body length4.4960in
Compatible insert styleSMDT
Coolant throughYes
Drill depth by diameter ratio5xD
Flute length4.4960
Maximum drill depth3.5820
Maximum drill depth range3.5000 to 4.5000
Maximum drill diameter0.6496
Minimum drill diameter0.6106
Overall length6.4960in
Shank diameter in3/4in
Shank length2.0000in
Shank typeWhistle Notch
Toolholder styleSMDH
Tool applicationDrilling
Tool materialSteel
