Sumitomo

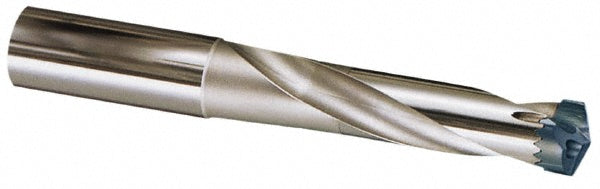

Indexable Drilling - Sumitomo 5L00W0F
MFR# 5L00W0FSeries SMD
$314.56List $324.82
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sumitomo 5L00W0F indexable drilling. Series SMD.
Specifications
Body length3.1180in
Compatible insert styleSMDT
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length3.1180
Maximum drill depth2.2830
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.6496
Minimum drill diameter0.6106
Overall length5.1180in
Shank diameter in3/4in
Shank length2.0000in
Shank typeWhistle Notch
Toolholder styleSMDH
Tool applicationDrilling
Tool materialSteel
