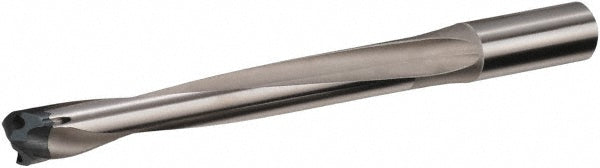

Indexable Drilling - Sumitomo 5L00W0G
MFR# 5L00W0GSeries SMD
$518.23List $535.14
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sumitomo 5L00W0G indexable drilling. Series SMD.
Specifications
Body length6.7010in
Compatible insert styleSMDT
Coolant throughYes
Drill depth by diameter ratio8xD
Flute length6.7010
Maximum drill depth5.9840
Maximum drill depth range4.5000 to 6.0000
Maximum drill diameter0.6890
Minimum drill diameter0.6500
Overall length8.7010in
Shank diameter in3/4in
Shank length2.0000in
Shank typeWhistle Notch
Toolholder styleSMDH
Tool applicationDrilling
Tool materialSteel
