Sumitomo
Indexable Drilling - Sumitomo 5L00W0J
MFR# 5L00W0JSeries SMD
$329.51List $377.51
Save 12%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

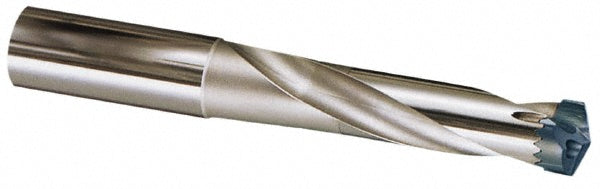

The Sumitomo 5L00W0J indexable drilling. Series SMD.
Specifications
Body length3.3150in
Compatible insert styleSMDT
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length3.3150
Maximum drill depth2.4010
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.6890
Minimum drill diameter0.6500
Overall length5.3150in
Shank diameter in3/4in
Shank length2.0000in
Shank typeWhistle Notch
Toolholder styleSMDH
Tool applicationDrilling
Tool materialSteel
