Sumitomo

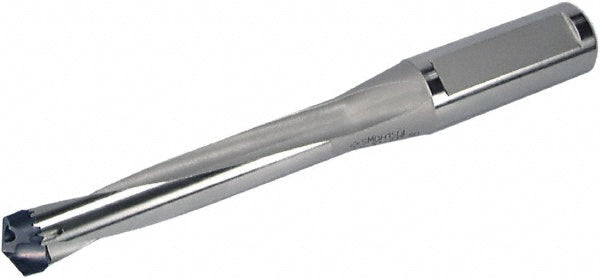

Indexable Drilling - Sumitomo 5L00W0P
MFR# 5L00W0PSeries SMD
$404.42List $417.61
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sumitomo 5L00W0P indexable drilling. Series SMD.
Specifications
Body length5.2300in
Compatible insert styleSMDT
Coolant throughYes
Drill depth by diameter ratio5xD
Flute length5.2300
Maximum drill depth4.2120
Maximum drill depth range3.5000 to 4.5000
Maximum drill diameter0.7677
Minimum drill diameter0.7287
Overall length7.4800in
Shank diameter in1in
Shank length2.2500in
Shank typeWhistle Notch
Toolholder styleSMDH
Tool applicationDrilling
Tool materialSteel
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
