Sumitomo

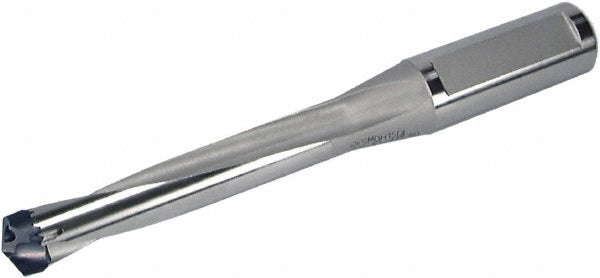

Indexable Drilling - Sumitomo 5L00W0S
MFR# 5L00W0SSeries SMD
$413.40List $426.89
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sumitomo 5L00W0S indexable drilling. Series SMD.
Specifications
Body length5.4270in
Compatible insert styleSMDT
Coolant throughYes
Drill depth by diameter ratio5xD
Flute length5.4270
Maximum drill depth4.4490
Maximum drill depth range3.5000 to 4.5000
Maximum drill diameter0.8070
Minimum drill diameter0.7681
Overall length7.6770in
Shank diameter in1in
Shank length2.2500in
Shank typeWhistle Notch
Toolholder styleSMDH
Tool applicationDrilling
Tool materialSteel
