Sumitomo

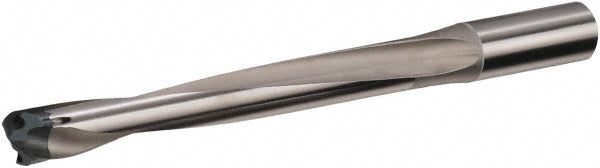

Indexable Drilling - Sumitomo 5L00W0X
MFR# 5L00W0XSeries SMD
$565.18List $583.62
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sumitomo 5L00W0X indexable drilling. Series SMD.
Specifications
Body length8.417
Compatible insert styleSMDT
Coolant throughYes
Drill depth by diameter ratio8xD
Flute length8.4170
Maximum drill depth7.6380
Maximum drill depth range6.0000 to 8.0000
Maximum drill diameter0.8976
Minimum drill diameter0.8469
Overall length10.669
Shank diameter in1
Shank length2.2500
Shank typeWhistle Notch
Toolholder styleSMDH
Tool applicationDrilling
Tool materialSteel
