Sumitomo

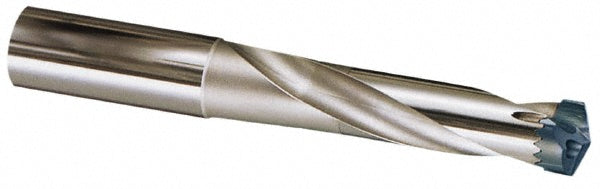

Indexable Drilling - Sumitomo 5L00W13
MFR# 5L00W13Series SMD
$377.44List $389.76
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sumitomo 5L00W13 indexable drilling. Series SMD.
Specifications
Body length4.0490in
Compatible insert styleSMDT
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length4.0490
Maximum drill depth3.2280
Maximum drill depth range2.5000 to 3.5000
Maximum drill diameter0.9370
Minimum drill diameter0.8980
Overall length6.2990in
Shank diameter in1in
Shank length2.2500in
Shank typeWhistle Notch
Toolholder styleSMDH
Tool applicationDrilling
Tool materialSteel
