Sumitomo

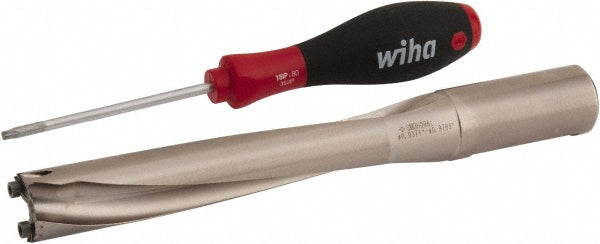

Indexable Drilling - Sumitomo 5L00W15
MFR# 5L00W15Series SMD
$457.67List $524.33
Save 12%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sumitomo 5L00W15 indexable drilling. Series SMD.
Specifications
Body length6.4110in
Compatible insert styleSMDT
Coolant throughYes
Drill depth by diameter ratio5xD
Flute length6.4110
Maximum drill depth5.3150
Maximum drill depth range4.5000 to 6.0000
Maximum drill diameter0.9764
Minimum drill diameter0.9374
Overall length8.6610in
Shank diameter in1in
Shank length2.2500in
Shank typeWeldon Flat
Toolholder styleSMDH
Tool applicationDrilling
Tool materialSteel
