Sumitomo

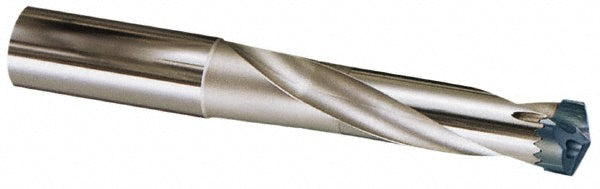

Indexable Drilling - Sumitomo 5L00W16
MFR# 5L00W16Series SMD
$386.45List $399.06
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sumitomo 5L00W16 indexable drilling. Series SMD.
Specifications
Body length4.4430in
Compatible insert styleSMDT
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length4.4430
Maximum drill depth3.3850
Maximum drill depth range2.5000 to 3.5000
Maximum drill diameter0.9764
Minimum drill diameter0.9374
Overall length6.6930in
Shank diameter in1in
Shank length2.2500in
Shank typeWhistle Notch
Toolholder styleSMDH
Tool applicationDrilling
Tool materialSteel
