Sumitomo

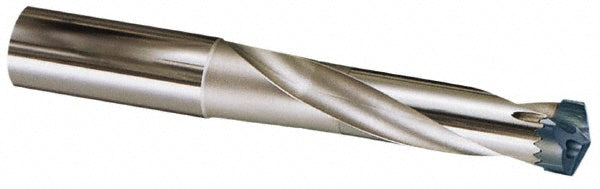

Indexable Drilling - Sumitomo 5L00W19
MFR# 5L00W19Series SMD
$402.75List $461.42
Save 12%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sumitomo 5L00W19 indexable drilling. Series SMD.
Specifications
Body length4.3180in
Compatible insert styleSMDT
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length4.3180
Maximum drill depth3.4650
Maximum drill depth range2.5000 to 3.5000
Maximum drill diameter1.0157
Minimum drill diameter0.9768
Overall length6.6930in
Shank diameter in1-1/4in
Shank length2.3750in
Shank typeWhistle Notch
Toolholder styleSMDH
Tool applicationDrilling
Tool materialSteel
