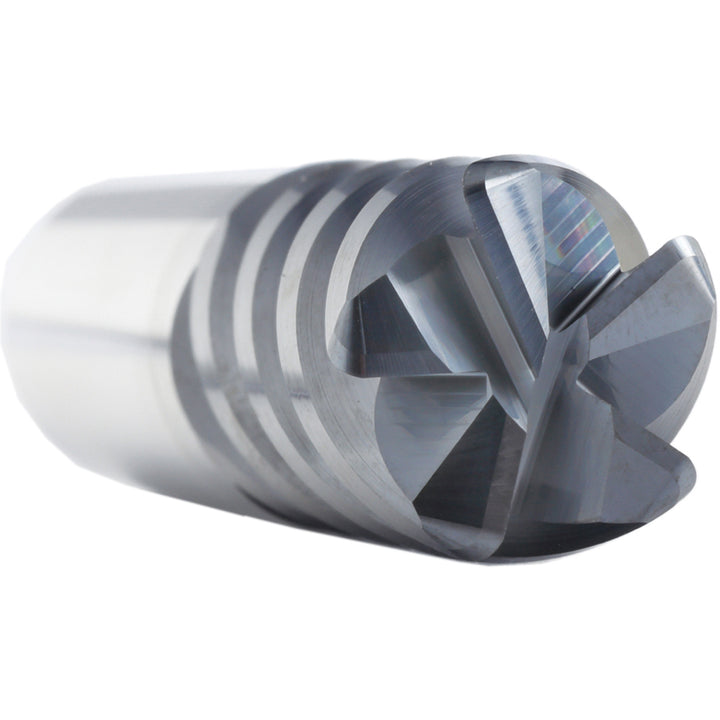

0.2362" 5-Flute Solid Carbide Square End Mill, AlCrN - Supermill 5250709

MFR# 5250709Series MSM5F

$46.75List $59.96 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes5

MaterialSolid Carbide

CoatingAlCrN

Description

The Supermill 5250709 is a 0.2362 5-flute Solid Carbide (Micrograin) square end mill with a AlCrN finish for longer tool life. Suited for steel, stainless steel, high-temp alloy, cast iron. 0.7480 length of cut, 2.2835 overall length. Series MSM5F.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlCrN

Coating finish familyAlCrN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut0.7480

Length of cut range0.7000 - 0.8000

Material gradeMicrograin

Mill diameter0.2362

Number of flutes5

Overall length2.2835

Primary workpiece materialSteel; Stainless Steel; High-Temp Alloy; Cast Iron

Shank diameter0.2362

Single or double endSingle

System of measurementMetric

Variable helixNo

Variable indexYes
