Supermill

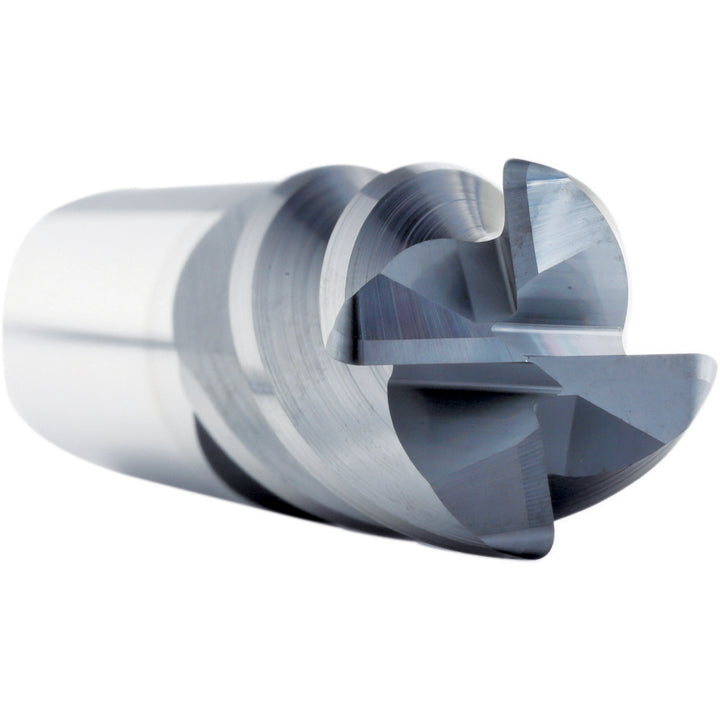

3/8" 4-Flute Solid Carbide Corner Radius End Mill, AlCrN - Supermill 5251262

MFR# 5251262Cat# SAPSeries SAP

$64.81List $83.12 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes4

MaterialSolid Carbide

CoatingAlCrN

Description

The Supermill 5251262 is a 3/8 4-flute Solid Carbide (Micrograin) corner radius end mill with a AlCrN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, non-ferrous metal. 7/8 length of cut, 2-1/2 overall length. Series SAP.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlCrN

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleMedium

Length of cut in7/8

Length typeStandard

Manufacturers catalog numberSAP

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Non-Ferrous Metal

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in3/8

Number of flutes4

Overall length in2-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Non-Ferrous Metal

Shank diameter in3/8

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
