1/2" 4-Flute Solid Carbide Corner Radius End Mill, AlCrN - Supermill 5251695

Supermill

1/2" 4-Flute Solid Carbide Corner Radius End Mill, AlCrN - Supermill 5251695

MFR# 5251695Cat# SM4FSeries SM4F

$68.35List $86.13 Save 20%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingAlCrN

Description

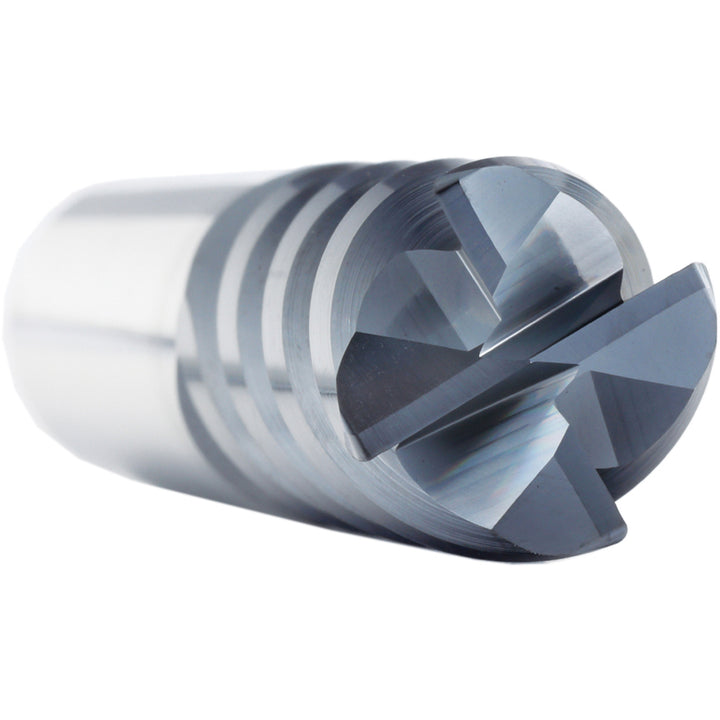

The Supermill 5251695 is a 1/2 4-flute Solid Carbide (Micrograin) corner radius end mill with a AlCrN finish for longer tool life. 5/8 length of cut, 2-1/2 overall length. Series SM4F.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlCrN
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Length of cut in5/8
Manufacturers catalog numberSM4F
Material gradeMicrograin
Mill diameter in1/2
Number of flutes4
Overall length in2-1/2
Shank diameter in1/2
Single or double endSingle
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Titan USA1/2" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Titan USA TC73952 $70.97 Hertel0.5" 4-Flute Solid Carbide Roughing End Mill, TiCN - Hertel C430S5000-C4 $177.88 Kennametal1/2" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 4079279 $173.09 Kennametal1/2" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Kennametal 4071902 $201.46
