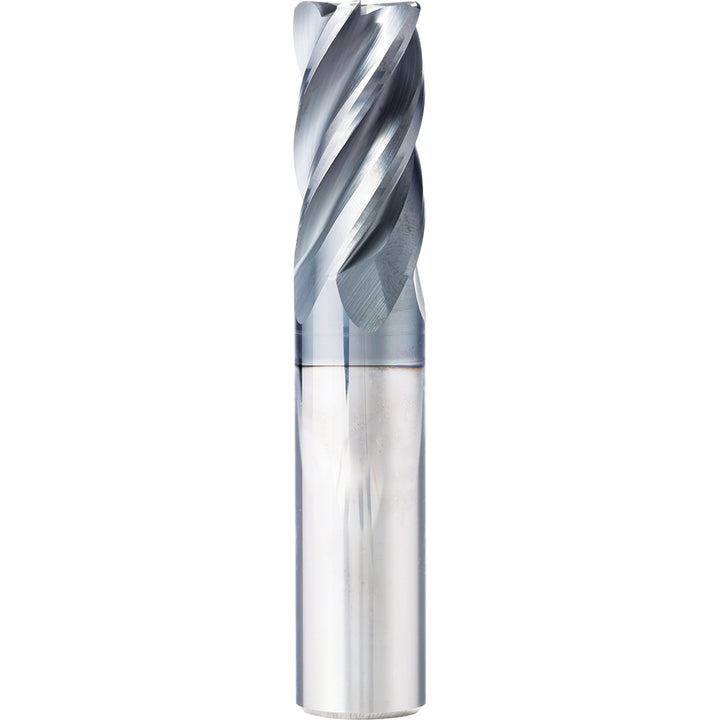

1/2" 5-Flute Solid Carbide Corner Radius End Mill, AlCrN - Supermill 5253071

Supermill

1/2" 5-Flute Solid Carbide Corner Radius End Mill, AlCrN - Supermill 5253071

MFR# 5253071Cat# 12039Series TC5F

$98.50List $126.34 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes5
MaterialSolid Carbide
CoatingAlCrN

Description

The Supermill 5253071 is a 1/2 5-flute Solid Carbide (Micrograin) corner radius end mill with a AlCrN finish for longer tool life. Suited for steel, stainless steel, cast iron. 1-1/4 length of cut, 3 overall length. Series TC5F.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlCrN
Coolant throughNo
Corner radius0.0600
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Length of cut in1-1/4
Length typeStandard
Manufacturers catalog number12039
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeMicrograin
Material removal typeFinishing
Mill diameter in1/2
Number of flutes5
Overall length in3
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Shank diameter in1/2
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexYes
