Supermill

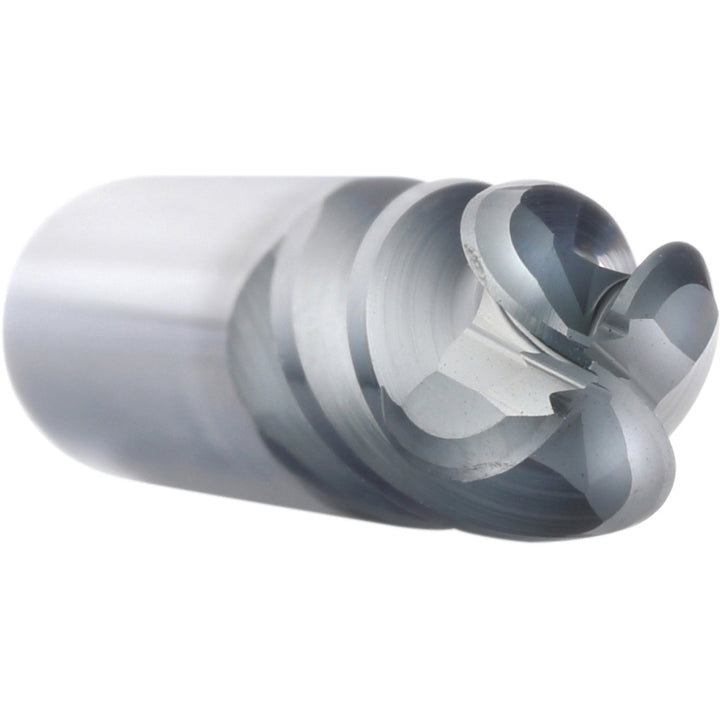

3/16" 4-Flute Solid Carbide Ball End Mill, AlCrN - Supermill 5253236

MFR# 5253236Cat# 43004Series XPVSB

$67.51List $86.58 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes4

MaterialSolid Carbide

CoatingAlCrN

Description

The Supermill 5253236 is a 3/16 4-flute Solid Carbide (Micrograin) ball end mill with a AlCrN finish for longer tool life. Suited for steel, stainless steel, cast iron. 9/16 length of cut, 2 overall length. Series XPVSB.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlCrN

Coating finish familyAlCrN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix styleVariable

Length of cut in9/16

Length typeStandard

Manufacturers catalog number43004

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in3/16

Neck length0.0000

Nose radius0.0938

Number of flutes4

Overall length in2

Primary workpiece materialSteel; Stainless Steel; Cast Iron

Reach length0.5625

Shank diameter in3/16

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixYes

Variable indexYes
