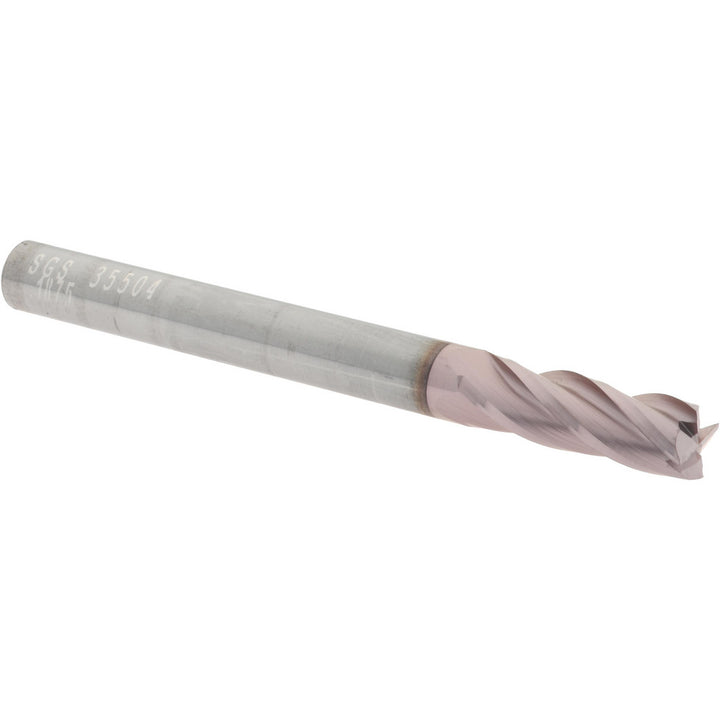

3/16" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 35504

SGS

3/16" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 35504

MFR# 35504Series 54

$24.74List $31.72 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The SGS 35504 is a 3/16 4-flute Solid Carbide square end mill. Suited for non-ferrous metal. 9/16 length of cut, 2 overall length. Series 54.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in9/16
Length typeRegular
Mill diameter in3/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2
Primary workpiece materialNon-Ferrous Metal
Shank diameter in3/16
Shank diameter tolerance+0.00000/-0.00032 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
