SGS

3/16" 4-Flute Solid Carbide Square End Mill - SGS 35479

MFR# 35479Series 54

$20.83List $26.71 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes4

MaterialSolid Carbide

Description

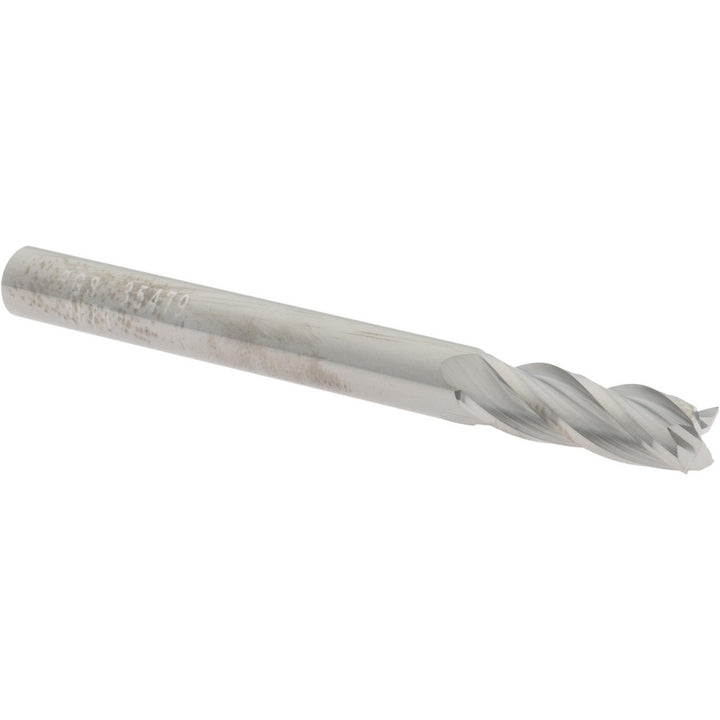

The SGS 35479 is a 3/16 4-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 9/16 length of cut, 2 overall length. Series 54.

Specifications

CentercuttingYes

ChipbreakerNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in9/16

Length typeRegular

Material gradeMicrograin

Mill diameter in3/16

Mill diameter tolerance+0.000/-0.002 in

Number of flutes4

Overall length in2

Primary workpiece materialNon-Ferrous Metal

Shank diameter in3/16

Shank diameter tolerance+0.00000/-0.00032 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
