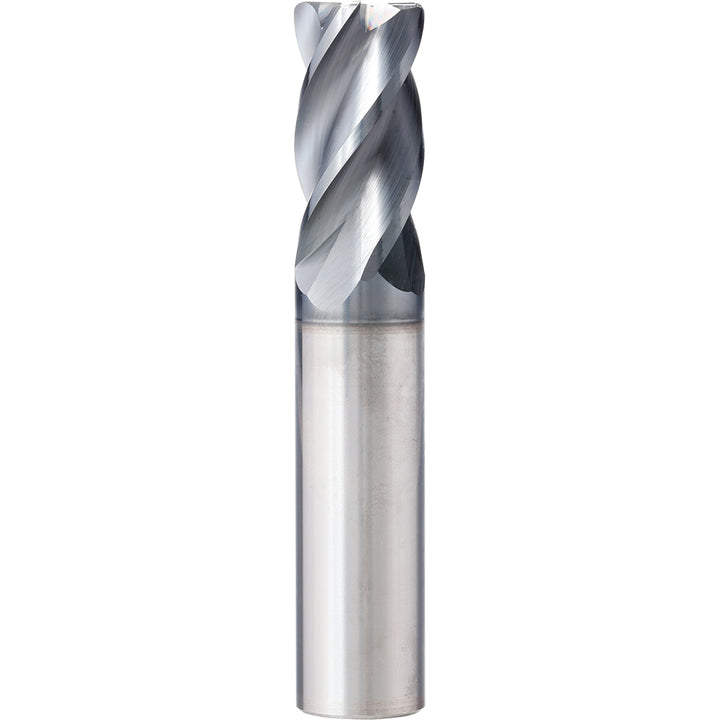

1/4" 4-Flute Solid Carbide Square End Mill, AlCrN - Supermill 5253683

MFR# 5253683Series XP

$61.11List $78.38 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes4

MaterialSolid Carbide

CoatingAlCrN

Description

The Supermill 5253683 is a 1/4 4-flute Solid Carbide (Micrograin) square end mill with a AlCrN finish for longer tool life. Suited for steel, stainless steel, high-temp alloy, cast iron. 1-1/8 length of cut, 3 overall length. Series XP.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlCrN

Coating finish familyAlCrN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in1-1/8

Length of cut range1.0000 - 1.2500

Material gradeMicrograin

Mill diameter in1/4

Number of flutes4

Overall length in3

Primary workpiece materialSteel; Stainless Steel; High-Temp Alloy; Cast Iron

Shank diameter in1/4

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexYes
