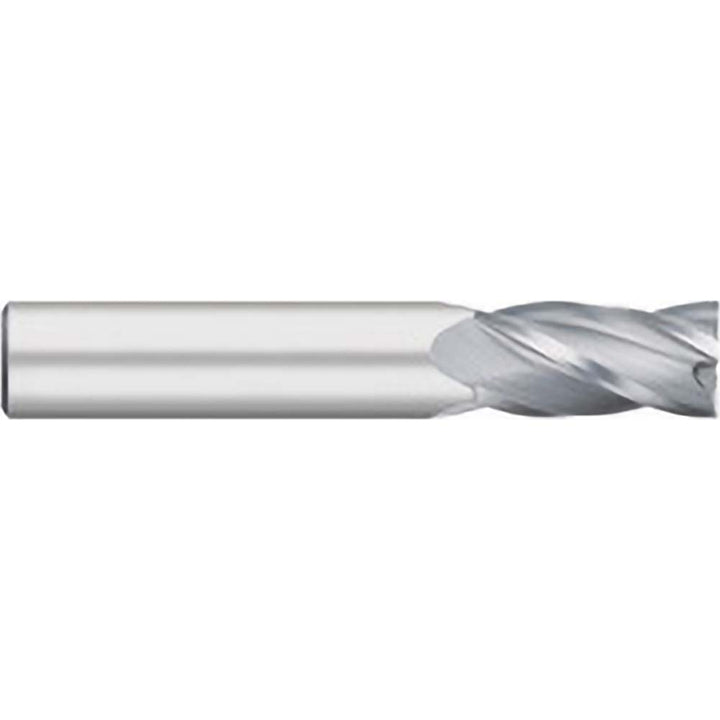

5/16" 4-Flute Solid Carbide Square End Mill - Titan USA TC10520

Name: 5/16" 4-Flute Solid Carbide Square End Mill - Titan USA TC10520
Brand: Titan USA
SKU: TC10520
Price: 21.64 USD
Availability: InStock

MFR# TC10520Series General Purpose End Mills - Carbide - 4 Flute - Square - 30 deg Helix

$21.64List $27.28 Save 20%

Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes4

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Titan USA TC10520 is a 5/16 4-flute Solid Carbide (Micrograin) square end mill. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, high-temp alloy. 13/16 length of cut, 2-1/2 overall length. Series General Purpose End Mills - Carbide - 4 Flute - Square - 30 deg Helix.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coating finish familyBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in13/16

Length of cut range0.8000 - 1.0000

Material gradeMicrograin

Mill diameter in5/16

Number of flutes4

Overall length in2-1/2

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy

Shank diameter in5/16

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
