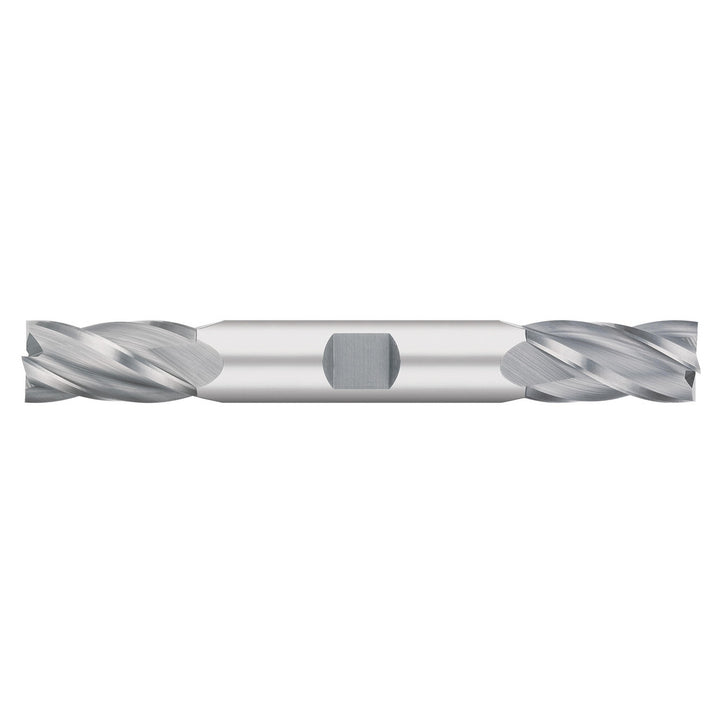

3/8" 4-Flute Solid Carbide Square End Mill - Titan USA TC12524

Titan USA

3/8" 4-Flute Solid Carbide Square End Mill - Titan USA TC12524

MFR# TC12524Series General Purpose End Mills - Carbide - 4 Flute - Square - 30 deg Helix - Double-Ended

$68.69List $86.57 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Titan USA TC12524 is a 3/8 4-flute Solid Carbide square end mill. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, high-temp alloy. 3/4 length of cut, 3-1/2 overall length. Series General Purpose End Mills - Carbide - 4 Flute - Square - 30 deg Helix - Double-Ended.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Material gradeSolid Carbide
Mill diameter in3/8
Number of flutes4
Overall length in3-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter in3/8
Shank typeStraight
Single or double endDouble
System of measurementFractional Inch
Variable helixNo
Variable indexNo
