5/64" 2-Flute Solid Carbide Square End Mill, AlTiN - Titan USA TC52278

Titan USA

5/64" 2-Flute Solid Carbide Square End Mill, AlTiN - Titan USA TC52278

MFR# TC52278

$25.05List $31.57 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/64
Flutes2
MaterialSolid Carbide
CoatingAlTiN

Description

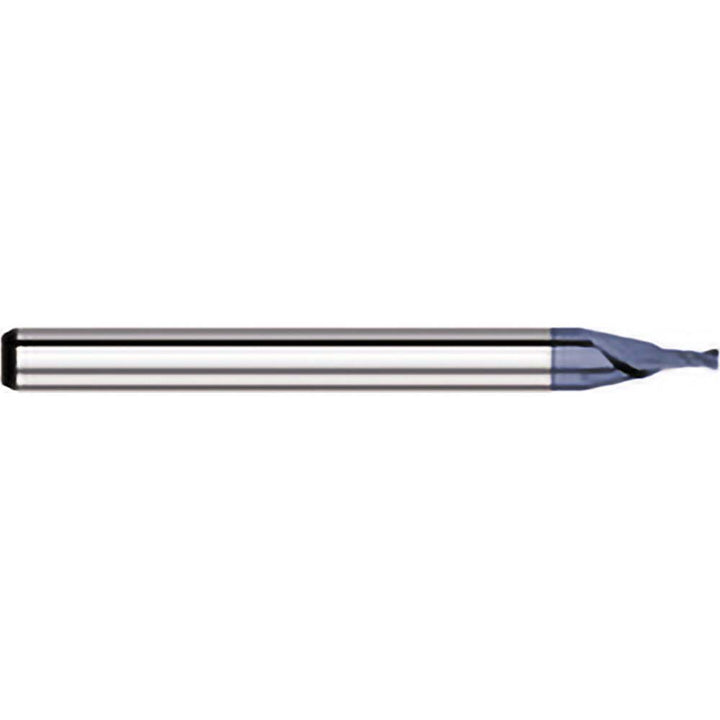

The Titan USA TC52278 is a 5/64 2-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 0.117 length of cut, 1-1/2 overall length.

Specifications

CentercuttingYes
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Helix angle30
Length of cut0.117
Material gradeMicrograin
Mill diameter in5/64
Number of flutes2
Overall length in1-1/2
Shank diameter in1/8
Variable helixNo
Variable indexNo
