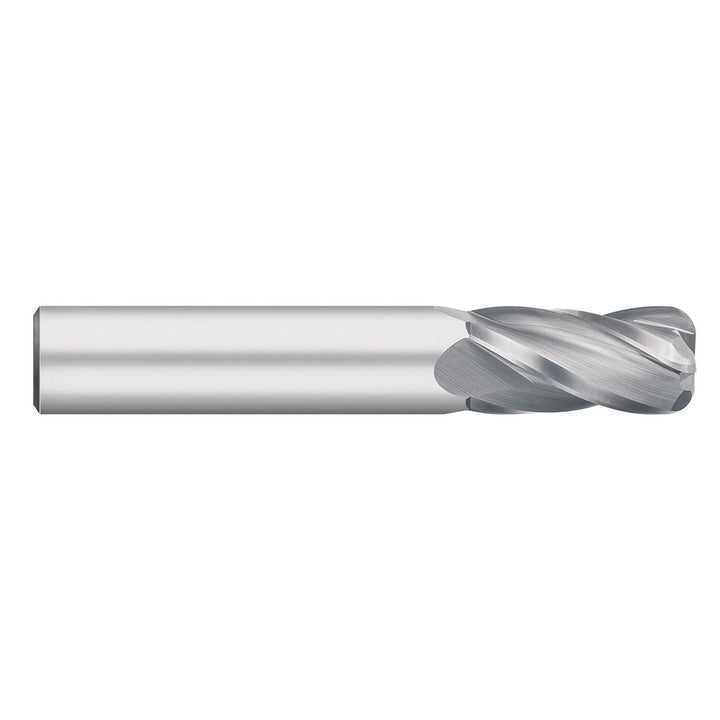

3/8" 4-Flute Solid Carbide Corner Radius End Mill - Titan USA TC74043

Titan USA

3/8" 4-Flute Solid Carbide Corner Radius End Mill - Titan USA TC74043

MFR# TC74043Series General Purpose End Mills - Carbide - 4 Flute - Corner Radius - 30 Helix

$30.05List $36.72 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide

Description

The Titan USA TC74043 is a 3/8 4-flute Solid Carbide corner radius end mill. 1 length of cut, 2-1/2 overall length. Series General Purpose End Mills - Carbide - 4 Flute - Corner Radius - 30 Helix.

Specifications

CentercuttingYes
ChipbreakerNo
Corner radius0.0600
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Length of cut in1
Mill diameter in3/8
Number of flutes4
Overall length in2-1/2
Shank diameter in3/8
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
