Titan USA

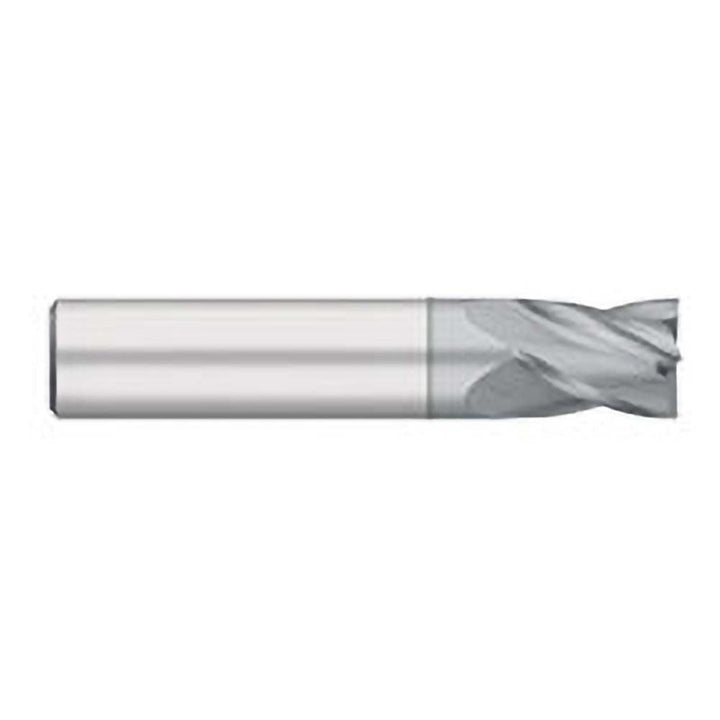

1/2" 4-Flute Solid Carbide Square End Mill, TiCN - Titan USA TC90932

MFR# TC90932

$54.38List $69.74 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingTiCN

Description

The Titan USA TC90932 is a 1/2 4-flute Solid Carbide (Micrograin) square end mill with a TiCN finish for longer tool life. 5/8 length of cut, 2-1/2 overall length.

Specifications

CentercuttingYes

Coating finishTiCN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeUpcut

Helix angle30

Length of cut in5/8

Length of cut range0.6000 - 0.7000

Material gradeMicrograin

Mill diameter in1/2

Number of flutes4

Overall length in2-1/2

Shank diameter in1/2

Variable helixNo

Variable indexNo
