3/32" 4-Flute Solid Carbide Square End Mill, AlTiN - Titan USA TC99506

Titan USA

3/32" 4-Flute Solid Carbide Square End Mill, AlTiN - Titan USA TC99506

MFR# TC99506

$13.25List $17.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/32
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

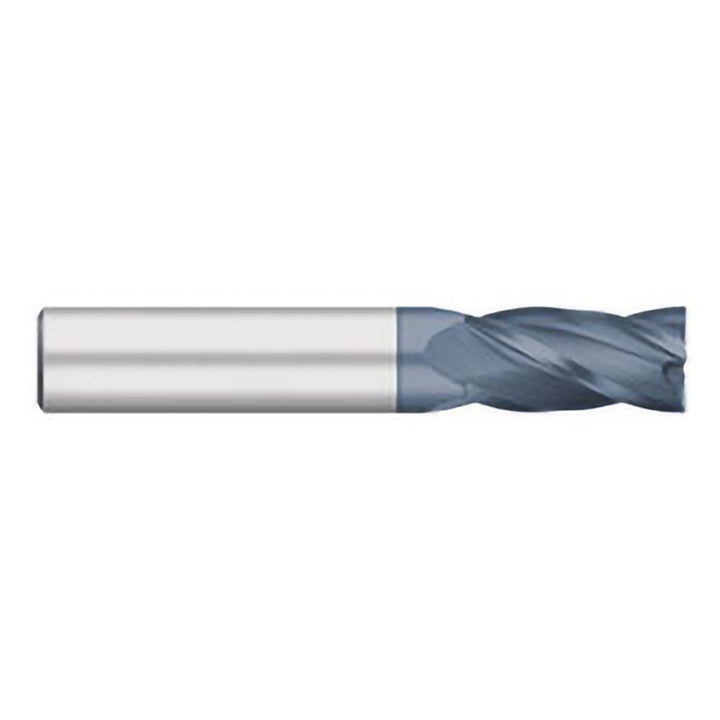

The Titan USA TC99506 is a 3/32 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 3/8 length of cut, 1-1/2 overall length.

Specifications

CentercuttingYes
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Helix angle30
Length of cut in3/8
Length of cut range0.3000 - 0.5000
Material gradeMicrograin
Mill diameter in3/32
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

OSG3/32" 4-Flute Solid Carbide Square End Mill - OSG 404-0939 $14.58 Titan USA3/32" 4-Flute Solid Carbide Square End Mill - Titan USA TC10506 $10.25 SGS3/32" 4-Flute Solid Carbide Square End Mill - SGS 35475 $16.14 SGS3/32" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 35501 $19.18
