Tungaloy

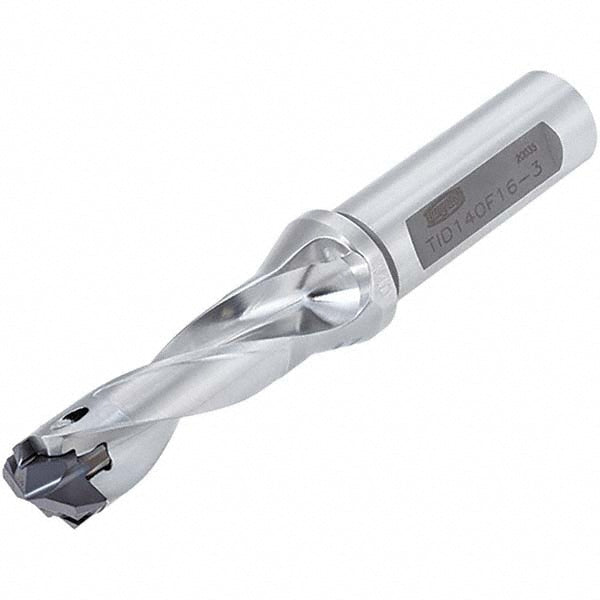

Indexable Drilling - Tungaloy 6723435
MFR# 6723435Series DrillMeister
$473.31
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Tungaloy 6723435 indexable drilling. Series DrillMeister.
Specifications
Body length3.606
Compatible insert styleDMP190; DMP191; DMP192; DMP193; DMP194; DMP195; DMP196; DMP197; DMP198; DMP199
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length2.3620
Maximum drill depth2.3620
Maximum drill diameter0.8230
Minimum drill diameter0.7870
Overall length5.811
Shank diameter in1
Shank length2.2050
Shank typeWeldon Flat
Toolholder styleTID L/D=3
Tool applicationDrilling; Holemaking
