Walter

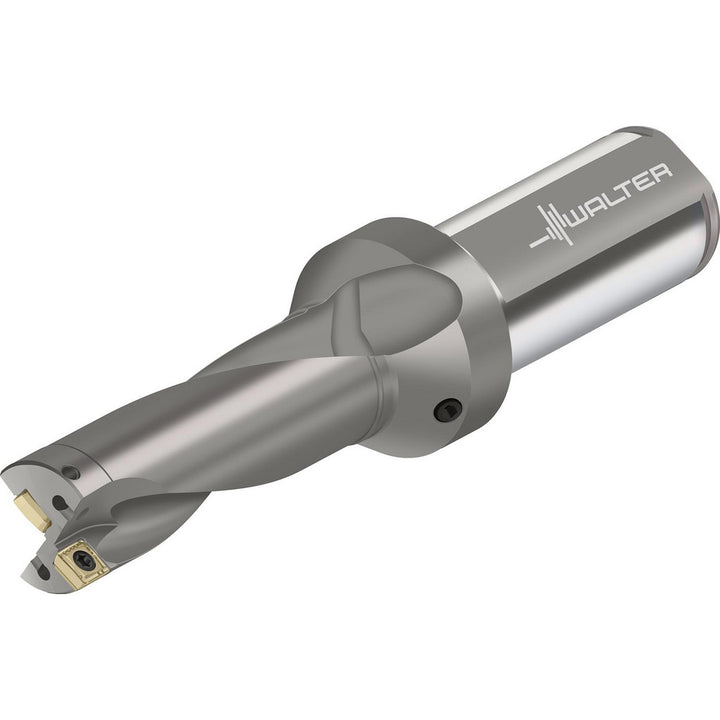

Indexable Drilling - Walter 6929608
MFR# 6929608Series D4120
$694.64List $707.40
Save 1%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Walter 6929608 indexable drilling. Series D4120.
Specifications
Body length4.0800
Collar diameter1.6250
Compatible drill styleD4120
Compatible insert size code4
Compatible insert styleP484.P; P484.C
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Flute length2.9520
Insert compatibilityP484.P-4; P484.C-4
Insert lock screwFS1457
Insert size0.3070; 0.3310
Maximum drill depth2.9520
Maximum drill depth range2.0000 to 3.0000
Maximum drill diameter in63/64
Number of drill inserts2
Overall length6.3610
Shank diameter in1-1/4
Shank length2.2810
Shank typeWeldon Flat; Flange
Tool applicationPlunging; Solid Drilling
Tool materialSteel
Tool performanceGeneral Purpose
