Walter

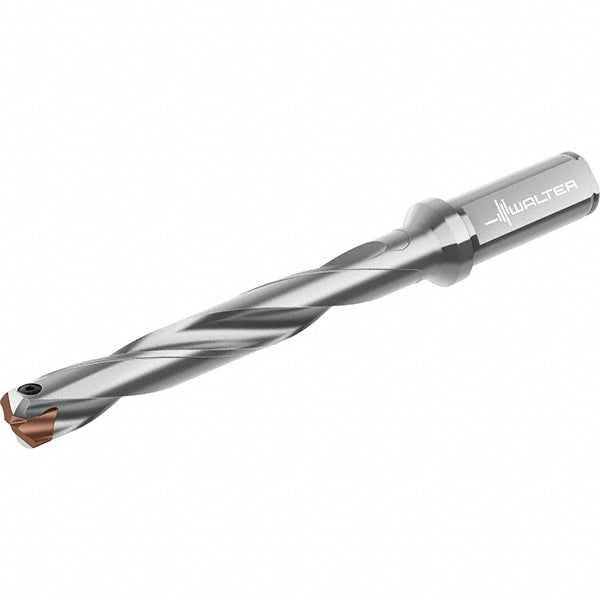

Indexable Drilling - Walter 7169856
MFR# 7169856Series D4140
$1,179.31List $1,288.44
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Walter 7169856 indexable drilling. Series D4140.
Specifications
Body length256.54
Compatible insert styleP6001-D30 R; P6003-D30 R; P6004-D30 R; P6005-D30 R
Coolant throughYes
Drill depth by diameter ratio7xD
Flute length8.4650
Maximum drill depth (mm)257.00
Maximum drill depth range (mm)200.00
Maximum drill diameter (mm)30.99
Minimum drill diameter (mm)30.00
Overall length (mm)322
Shank diameter (mm)32.00
Shank length2.3620
Shank typeStraight-Cylindrical
Toolholder styleD4140
Tool applicationSolid Drilling
