Walter

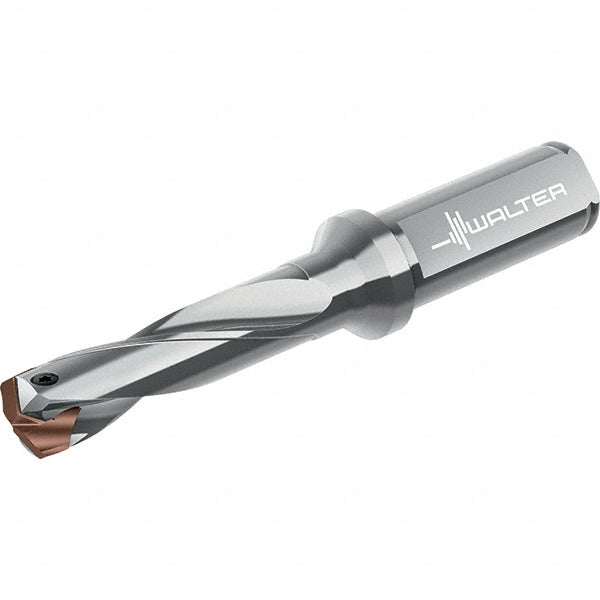

Indexable Drilling - Walter 7508852
MFR# 7508852Series D4140
$496.96List $533.51
Save 6%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Walter 7508852 indexable drilling. Series D4140.
Specifications
Body length88.00
Compatible insert styleP6001; P6003; P6004; P6005
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length (mm)68.00
Maximum drill depth (mm)54.00
Maximum drill depth range (mm)40.00 to 60.00
Maximum drill diameter (mm)17.99
Minimum drill diameter (mm)17.00
Overall length (mm)139.59mm
Shank diameter in3/4in
Shank length2.0310in
Shank typeStraight-Cylindrical
Toolholder styleD4140
Tool applicationSolid Drilling
Tool materialSteel
