Walter

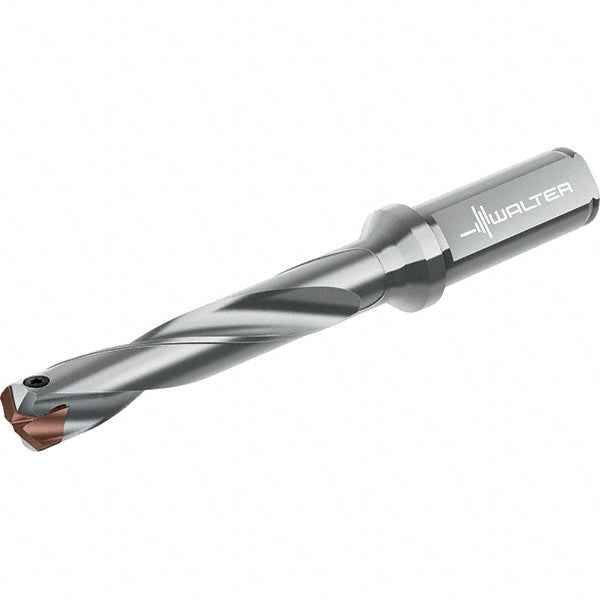

Indexable Drilling - Walter 7508867
MFR# 7508867Series D4140
$448.79List $490.32
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Walter 7508867 indexable drilling. Series D4140.
Specifications
Body length92.00
Compatible insert styleP6001; P6003; P6004; P6005
Coolant throughYes
Drill depth by diameter ratio5xD
Flute length (mm)72.00
Maximum drill depth (mm)62.00
Maximum drill depth range (mm)60.00 to 80.00
Maximum drill diameter (mm)12.99
Minimum drill diameter (mm)12.00
Overall length (mm)140
Shank diameter in5/8
Shank length1.8900
Shank typeStraight-Cylindrical
Toolholder styleD4140
Tool applicationSolid Drilling
Tool materialSteel
