Walter-Prototyp

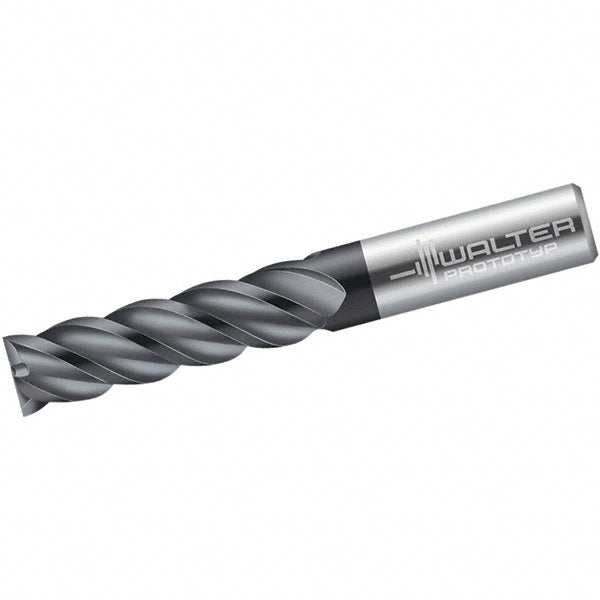

1/2" 4-Flute Solid Carbide Square End Mill, TiAlN - Walter-Prototyp 5543416

MFR# 5543416Series AH3023418

$215.58List $276.49 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingTiAlN

Description

The Walter-Prototyp 5543416 is a 1/2 4-flute Solid Carbide (A1007) square end mill with a TiAlN finish for longer tool life. Suited for steel. 2 length of cut, 4-1/2 overall length. Series AH3023418.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiAlN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in2

Length of cut range2.0000+

Length typeLong

Material gradeA1007

Mill diameter in1/2

Mill diameter toleranceh10

Number of flutes4

Overall length in4-1/2

Overall length tolerance+2.00 mm

Primary workpiece materialSteel

Reach length2

Secondary workpiece materialStainless Steel

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Tir maximum (mm)0.02

Variable helixNo

Variable indexNo
