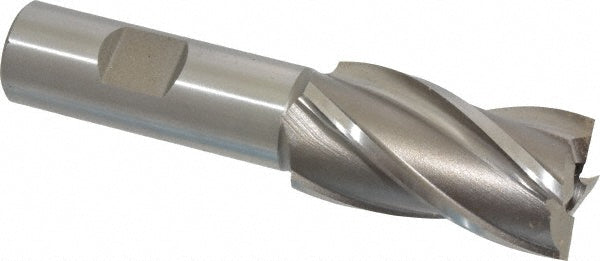

1" 4-Flute High Speed Steel Square End Mill - Weldon 41556-00-W

Weldon

1" 4-Flute High Speed Steel Square End Mill - Weldon 41556-00-W

MFR# 41556-00-WSeries A

$67.97List $117.95 Save 42%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1
Flutes4
MaterialHigh Speed Steel

Description

The Weldon 41556-00-W is a 1 4-flute High Speed Steel (M7) square end mill. Suited for hard material. 1-7/8 length of cut, 4-1/8 overall length. Series A.

Specifications

CentercuttingNo
ChipbreakerNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-7/8
Length of cut range1.5000 - 2.0000
Length typeRegular
Material gradeM7
Mill diameter in1
Mill diameter tolerance+0.003/-0.000 in
Number of flutes4
Overall length in4-1/8
Primary workpiece materialHard Material
Shank diameter in3/4
Shank diameter tolerance-0.0001/-0.0005 in
Shank typeStraight-Cylindrical
