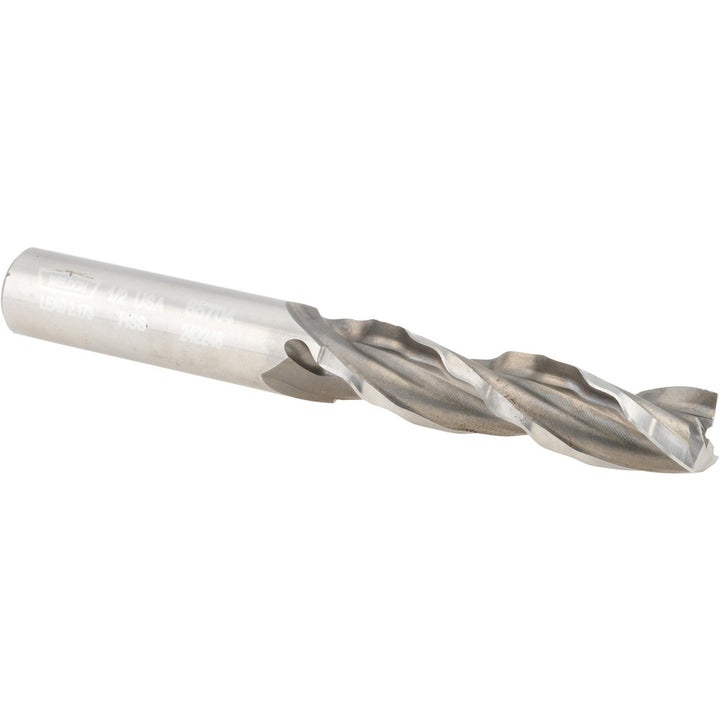

0.5000" 3-Flute High Speed Steel Square End Mill - Weldon 65704-00-W

Weldon

0.5000" 3-Flute High Speed Steel Square End Mill - Weldon 65704-00-W

MFR# 65704-00-W

$46.45List $80.60 Save 42%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialHigh Speed Steel
CoatingBright/Uncoated

Description

The Weldon 65704-00-W is a 0.5000 3-flute High Speed Steel (M7) square end mill. 2 length of cut.

Specifications

CentercuttingYes
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialHigh Speed Steel
End typeSquare
Extended reachNo
Flute directionRight Hand
Helix angle30
Length of cut in2
Material gradeM7
Maximum helix angle30
Mill diameter0.5000
Mill diameter frac in1/2
Mill diameter tolerance+0.003/-0.003 in
Number of flutes3
Shank diameter in1/2
Shank typeWeldon Flat
Single or double endSingle
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

M.A. Ford.1/2" 3-Flute Solid Carbide Square End Mill - M.A. Ford. 13850005 $156.73 Kennametal1/2" 3-Flute Solid Carbide Corner Radius End Mill - Kennametal 3658838 $161.96 Supermill1/2" 3-Flute Solid Carbide Square End Mill, DLC - Supermill 5250056 $190.26 Sandvik Coromant1/2" 3-Flute Solid Carbide Square End Mill, ZrN - Sandvik Coromant 8037589 $122.77
