Widia

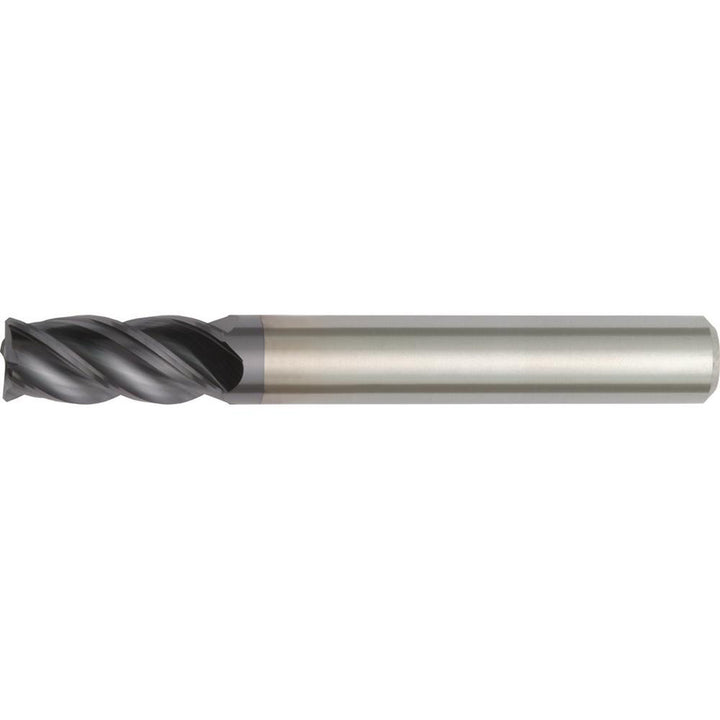

1/2" 4-Flute Solid Carbide Square End Mill, TiAlN-LW - Widia 2837501

MFR# 2837501Series 4V05

$184.52List $236.65 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingTiAlN-LW

Description

The Widia 2837501 is a 1/2 4-flute Solid Carbide (TiAlN-LW) square end mill with a TiAlN-LW finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 2 length of cut, 4 overall length. Series 4V05.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiAlN-LW

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle38

Length of cut in2

Length typeRegular

Material gradeTiAlN-LW

Mill diameter in1/2

Neck diameter0.5

Neck length2.0000

Number of flutes4

Overall length in4

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Reach length in2

Secondary workpiece materialHigh Temperature Alloy

Shank diameter in1/2

Shank typeWeldon Flat

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
