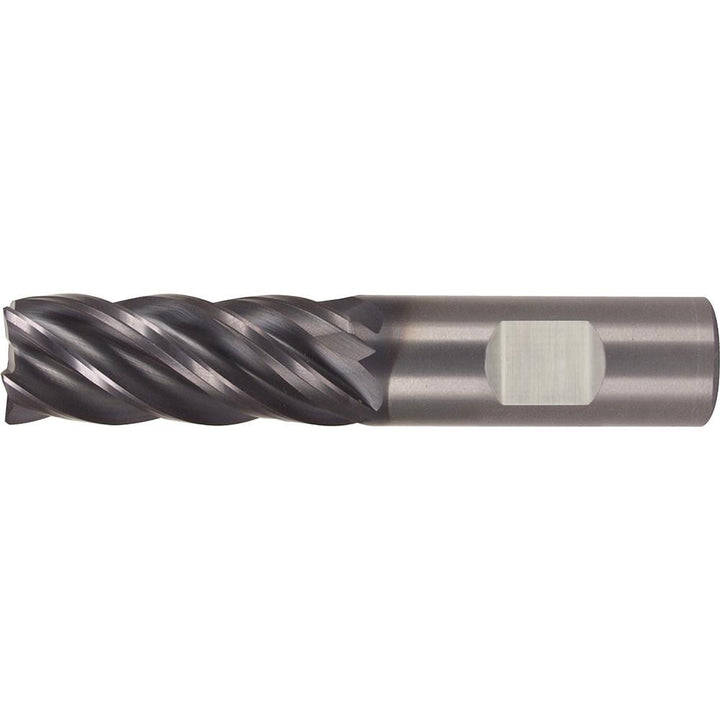

1/2" 5-Flute Solid Carbide Square End Mill, WP15PE - Widia 3552619

Widia

1/2" 5-Flute Solid Carbide Square End Mill, WP15PE - Widia 3552619

MFR# 3552619Series 5V0S

$161.09List $203.02 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes5
MaterialSolid Carbide
CoatingWP15PE

Description

The Widia 3552619 is a 1/2 5-flute Solid Carbide (WP15PE) square end mill with a WP15PE finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium, hard material. 1-1/4 length of cut, 3 overall length. Series 5V0S.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishWP15PE
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle38
Length of cut in1-1/4
Length typeRegular
Material gradeWP15PE
Mill diameter in1/2
Neck diameter0.5
Neck length1.2500
Number of flutes5
Overall length in3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Hard Material
Reach length in1-1/4
Secondary workpiece materialHigh Temperature Alloy
Shank diameter in1/2
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
